Oil Mist Air Cleaner

Oil Mist Air Cleaner

  • Country of Origin:Taiwan
  • Model:DM-JW-001R/002R/003R
  • Material:Polyester Fiber+ Resin Fiber+ Glass Fiber
  • Color:Green & White Color
  • Minimum Order:1 Set
  • Delivery Lead Time:30~60 Days
  • Delivery FOB Port:FOB Taichung Port
  • Payment Condition:T/T or Western Union

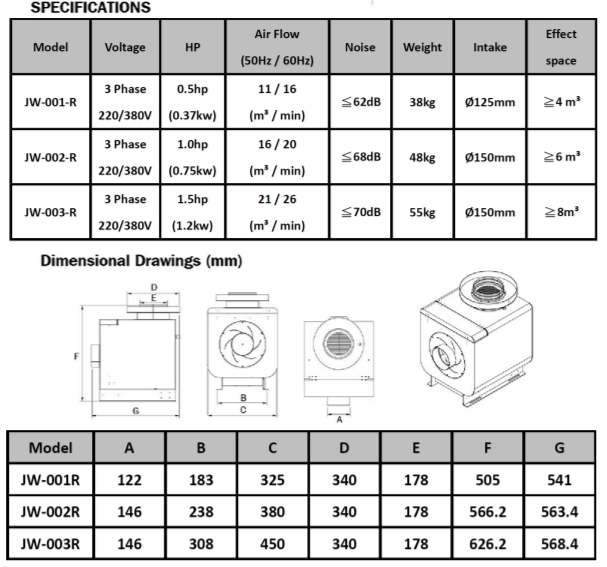

Detail Specifications

Oil Mist Recovery & Air Purification Process:

1. Direct Interception Intercepts 70% of Oil Mist
◎When oil mist flow through the stainless steel filter at the front end, mist particles can be intercepted and collected
◎Stainless steel filter can washed and reused.

2. Inertial Hitting
◎After mist particles flow through the filter, located at the front end, they hit the oil stop plates in the suction direction
in order to be collected easily.
◎Featured with tornado effect to dramatically increase filter efficiency.

3. Diffusion Effect
◎Once mist particles hit the stop plates, they may cause dispersed flow and diffusion, before being easily collected
by large area woven screen at the second stage.
◎Oil mist hitting generates static electricity that absorbs oil mist, making oil droplet collection more convenient.

4. Blade Wheel - Centrifugal Hitting Extra Powerful Centrifugal
◎The turbo type blade wheel integrates innovative features such as extra powerful suction force and centrifugal force as well as high speed cyclone that allow oil mist to adhere on the internal walls, then, mist particles are intercepted by the internal oil stop plates, before being collected.

5. Pressure Detection Gauge
◎The pressure detection gauge indicates the time when the filter screen need to cleaned or final filter need to replaced, it reduces electricity consumption, while maintaining high efficiency oil mist removal.

6. Final Filtration(Optional) - Smoke Filtration
◎Although oil mist has been filtrated at various stages, there is still some smoke contained in the air, such smoke can be
removed with the use of a HEPA filter drum.
