Horizontal Machining Center

Horizontal Machining Center(UHM-800TA Series)

DYNAWAY MACHINERY CO., LTD.

Product Information - Horizontal Machining Center

Inquire Now Add to Inquiry Cart

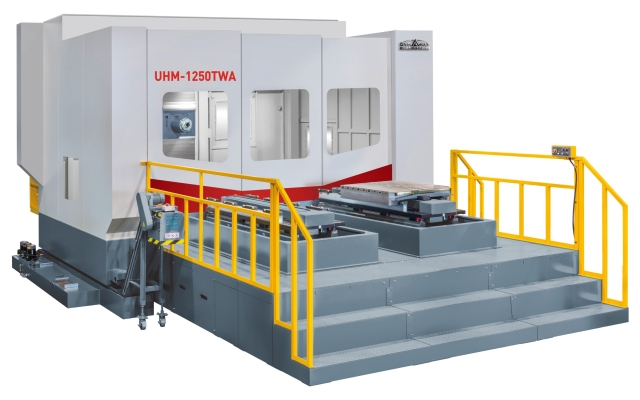

Click for a larger picture.

Horizontal Machining Center

Product Description

Product Name:

Horizontal Machining Center

Country of Origin:

Taiwan

Model:

Horizontal Machining Center(UHM-800TA Series)

Minimum Order:

1 SET

Delivery Lead Time:

90~120 DAYS

Delivery FOB Port:

Taichung Port

Payment Condition:

US DOLLARS

Detail Specifications

Model: UHM-800TA
Table size(2 Pallets): 800 x 800mmAPC(1º Indexing)
Table load: 2500kg
X / Y / Z axis travel: 1600(2000) x 1000 x 1200mm
Spindle center to surface of table: 0-1000mm
Spindle nose to table center: 200-1400mm
Spindle nose taper: BT50
Spindle speed: 6000(8000)RPM
Spindle motor: 15/18.5kw(22/26kw)
Rapid on X/Y/Z axis: 20M(Min.)
Cutting feed rate: 1-5000mm/min.
Tool store capacity: 40(60) tools
Power requirement: 45KVA
Machine net weight: about 24000kg

Related Products



Contact Information

Company:DYNAWAY MACHINERY CO., LTD.
Address: (office)5F NO. 146-29 SEC. 1 DONGSHAN RD. TAICHUNG CITY 40647 TAIWAN
Telephone:886-4-2437-5196
Fax:886-4-2437-5149
Contact Person: Robert Chuang (Sales Manager)
